ThingPulse ESP8266 Weather Station Color
ESP8266 Weather Station Color using ILI9341 240x320 TFT display
Hardware Requirements
The code in this project supports an ILI9341 240x320 TFT display with code running on an ESP8266. To get you up and running in no time we created a kit which contains all the necessary parts including a custom PCB to connect display and WiFi chip: https://thingpulse.com/product/esp8266-wifi-color-display-kit-2-4/
By buying the kit from us you are supporting future development. Thank you!
Step-by-step tutorial
A complete step-by-step tutorial/guide is available at https://docs.thingpulse.com/guides/wifi-color-display-kit/.

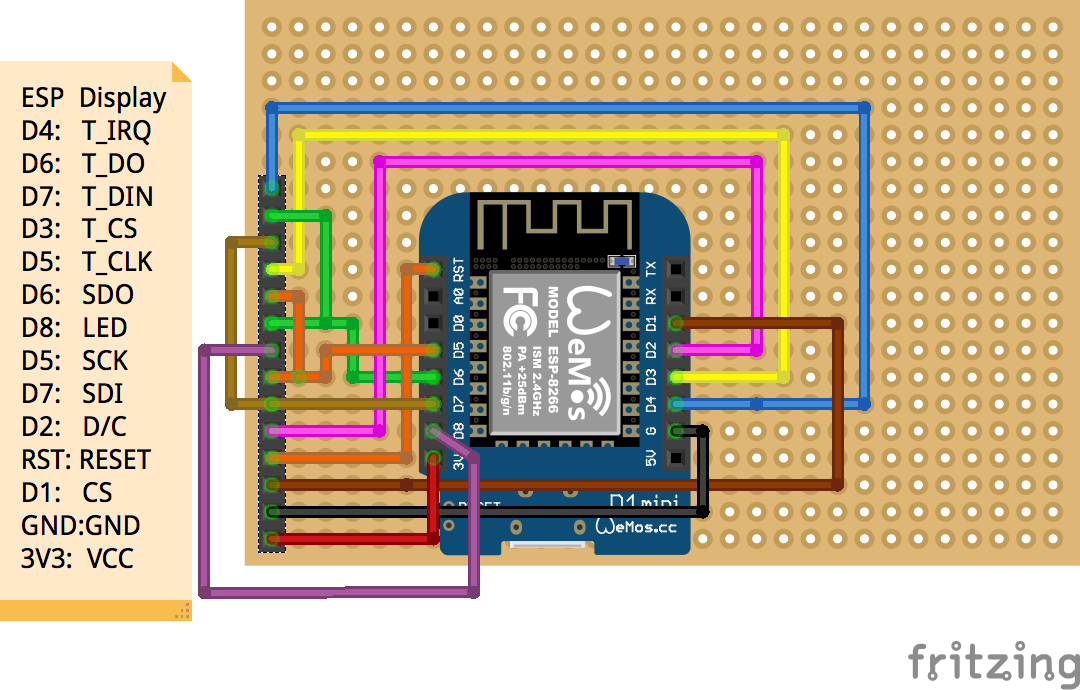

Wiring
The below wiring diagram is only needed when you do not buy the self-contained kit from ThingPulse but rather assemble the components yourself.
| Wemos D1 Mini | ILI9341 |
|---|---|
| D4 | T_IRQ |
| D6 | T_DO |
| D7 | T_DIN |
| D3 | T_CS |
| D5 | T_CLK |
| D6 | SDO |
| D8 | LED |
| D5 | SCK |
| D7 | SDI |
| D2 | D/C |
| RST | RESET |
| D1 | CS |
| GND | GND |
| 3V3 | VCC |
