ESP8266 Weather Station in Color using ILI9341 TFT 240x320 display
Hardware Requirements

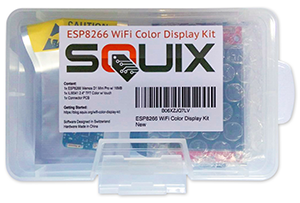

This code is made for an 240x320 65K ILI9341 display with code running on an ESP8266. Since it was sometimes complicated to find the right parts I created a kit which contains all the parts including the connector PCB: https://blog.squix.org/product/esp8266-wifi-color-display-kit-2-4 By buying the kit from me you are supporting future development. Thank you!
Software Requirements/ Libraries
- Mini Grafx by Daniel Eichhorn
- ESP8266 WeatherStation by Daniel Eichhorn
- Json Streaming Parser by Daniel Eichhorn
- simpleDSTadjust by neptune2
You also need to get an API key for the Wunderground data: https://www.wunderground.com/

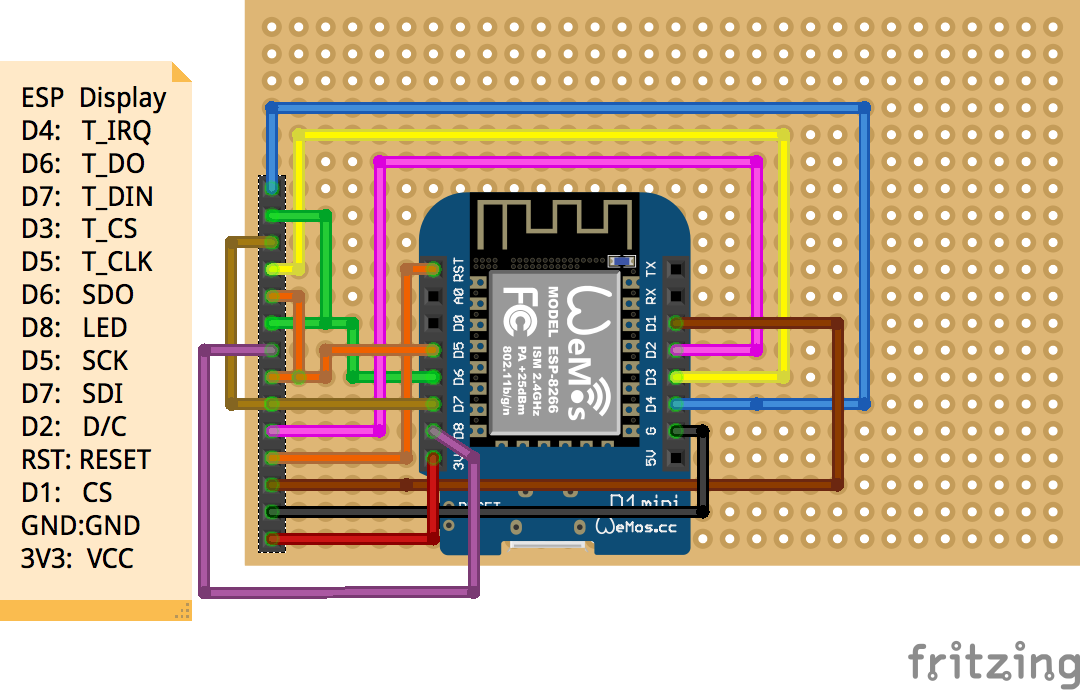

Wiring
| Wemos D1 Mini | ILI9341 |
|---|---|
| D4 | T_IRQ |
| D6 | T_DO |
| D7 | T_DIN |
| D3 | T_CS |
| D5 | T_CLK |
| D6 | SDO |
| D8 | LED |
| D5 | SCK |
| D7 | SDI |
| D2 | D/C |
| RST | RESET |
| D1 | CS |
| GND | GND |
| 3V3 | VCC |
