ESP8266 Weather Station in Color using ILI9341 TFT 240x320 display
Hardware Requirements
- SQUIX
This code is made for an 240x320 65K ILI9341 display with code running on an ESP8266. Since it was sometimes complicated to find the right parts I created a kit which contains all the parts including the connector PCB: https://blog.squix.org/product/esp8266-wifi-color-display-kit-2-4 By buying the kit from me you are supporting future development. Thank you!
- AZSMZ TFT
cxandy created a nice adaptation of this code to run with the hardware from AZSMZ: https://github.com/cxandy/esp8266-weather-station-color
Software Requirements/ Libraries
- Mini Grafx by Daniel Eichhorn
- ESP8266 WeatherStation by Daniel Eichhorn
- Json Streaming Parser by Daniel Eichhorn
- simpleDSTadjust by neptune2
You also need to get an API key for the Wunderground data: https://www.wunderground.com/
Settings
Please have a good look at the settings.h file. There you can:
- set your location for the weather information
- Set the clock mode: 12hour (am/pm) or 24hour mode
- Metric system for temperature
- Timezone and daytime saving options
- API key for the wunderground service

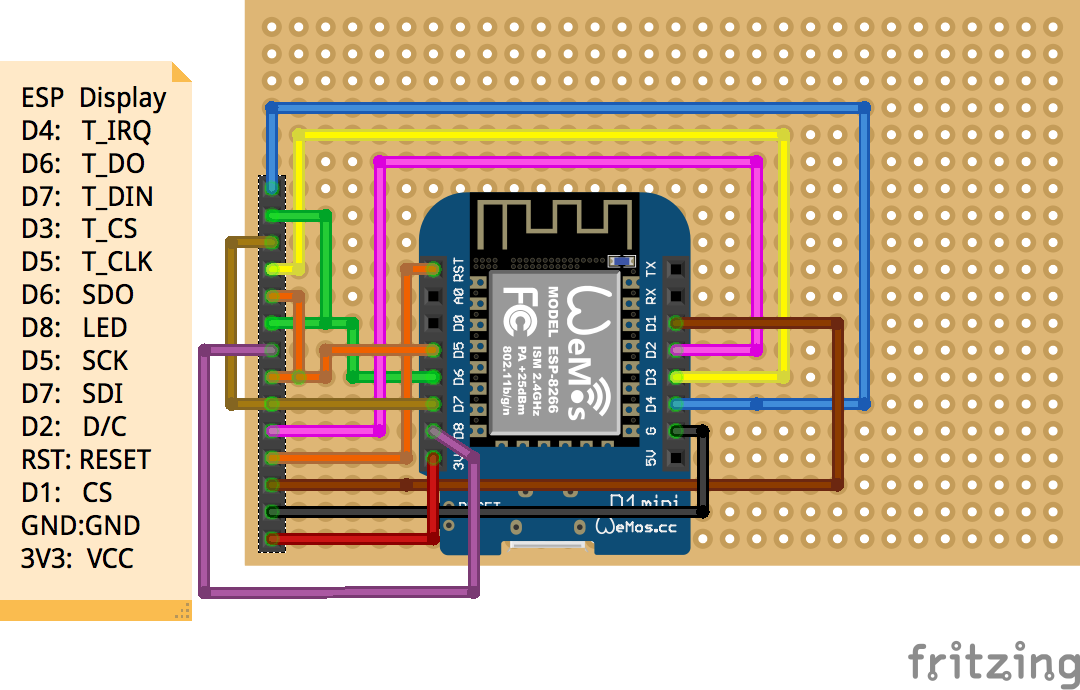

Wiring
| Wemos D1 Mini | ILI9341 |
|---|---|
| D4 | T_IRQ |
| D6 | T_DO |
| D7 | T_DIN |
| D3 | T_CS |
| D5 | T_CLK |
| D6 | SDO |
| D8 | LED |
| D5 | SCK |
| D7 | SDI |
| D2 | D/C |
| RST | RESET |
| D1 | CS |
| GND | GND |
| 3V3 | VCC |
