ThingPulse ESP8266 Weather Station Color
ESP8266 Weather Station Color using ILI9341 240x320 TFT display
Hardware Requirements

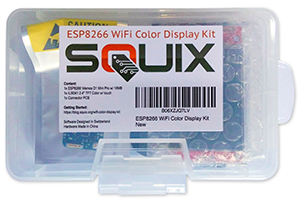

The code in this project supports an ILI9341 240x320 TFT display with code running on an ESP8266. To get you up and running in no time we created a kit which contains all the necessary parts including a custom PCB to connect display an WiFi chip: https://thingpulse.com/product/esp8266-wifi-color-display-kit-2-4/
By buying the kit from us you are supporting future development. Thank you!
Software Requirements/ Libraries
- Mini Grafx by Daniel Eichhorn
- ESP8266 WeatherStation by Daniel Eichhorn
- Json Streaming Parser by Daniel Eichhorn
- simpleDSTadjust by neptune2
You also need to get an key for the Wunderground API: https://www.wunderground.com/weather/api/
Settings
Please have a good look at the settings.h file. It offers config options for:
- Location to obtain weather data for
- Clock mode: 12hour (am/pm) or 24hour
- Metric system for temperature
- Timezone and daytime saving options
- API key for the Wunderground service

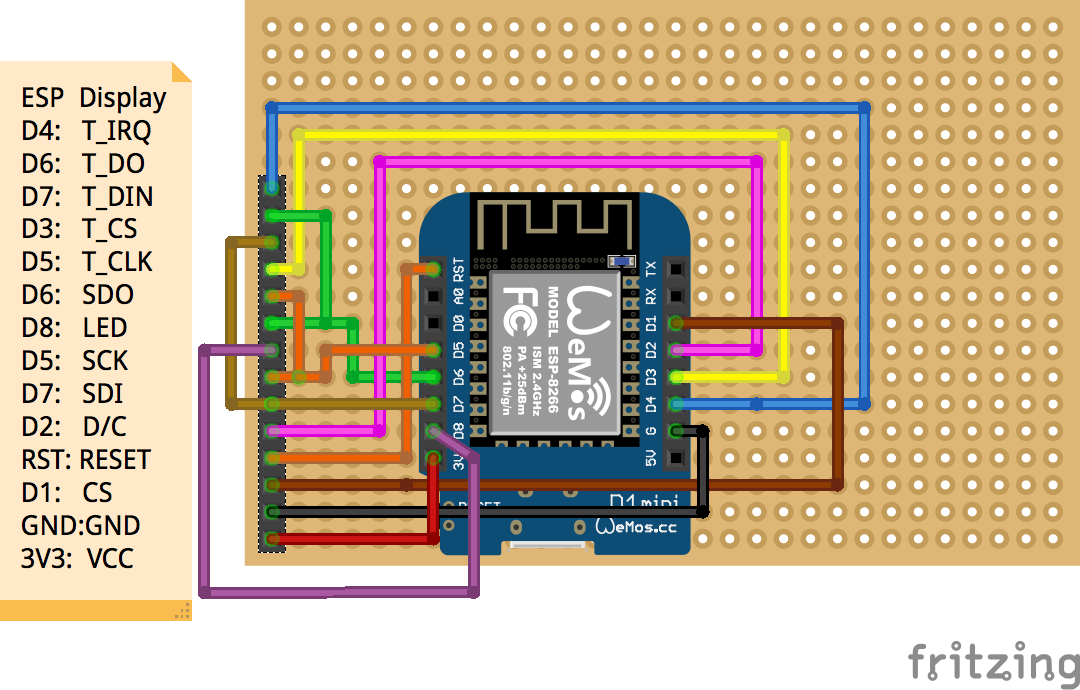

Wiring
| Wemos D1 Mini | ILI9341 |
|---|---|
| D4 | T_IRQ |
| D6 | T_DO |
| D7 | T_DIN |
| D3 | T_CS |
| D5 | T_CLK |
| D6 | SDO |
| D8 | LED |
| D5 | SCK |
| D7 | SDI |
| D2 | D/C |
| RST | RESET |
| D1 | CS |
| GND | GND |
| 3V3 | VCC |
